FB-6010B Fuse Block Indicator
| Gerneral Product Information |
| Item number: |
FB-6010B |
| Rating: |
12~120V (AC/DC are available) |
| Size: |
55.0*13.0*30.0mm (L*W*H)
|
| Product Features |
|
Item Number: FB-6010B
Rated Voltage: 12~120V (AC/DC are available)
FB-6010B is a power failure indicator which is assembly with FB-601x Series fuse block.
It is useful when you need to monitor a fuse condition.
Whenever the fuse goes out the LED lights up and let you know the fuse has been blown.
In normal condition the LED remains off all the time.
|

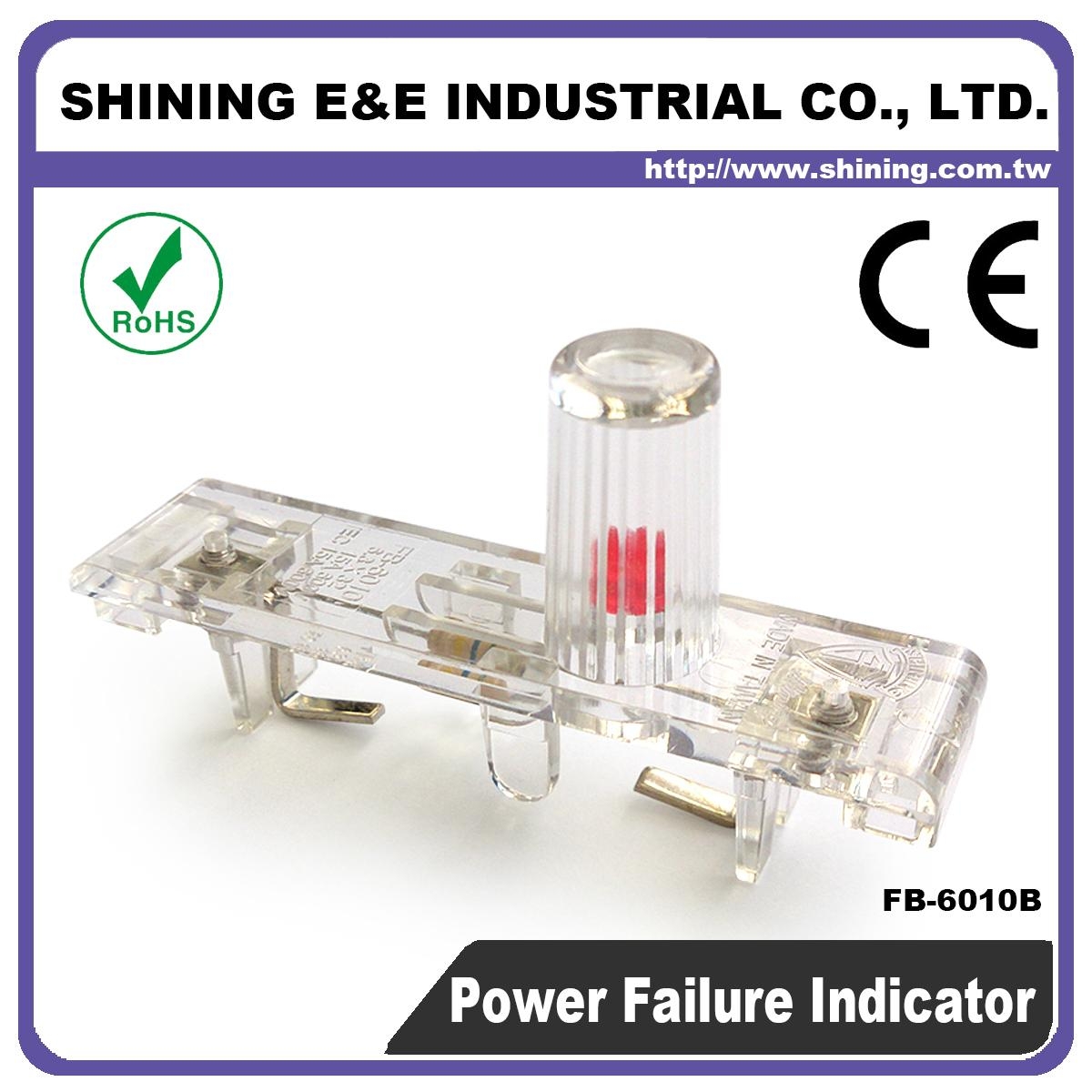

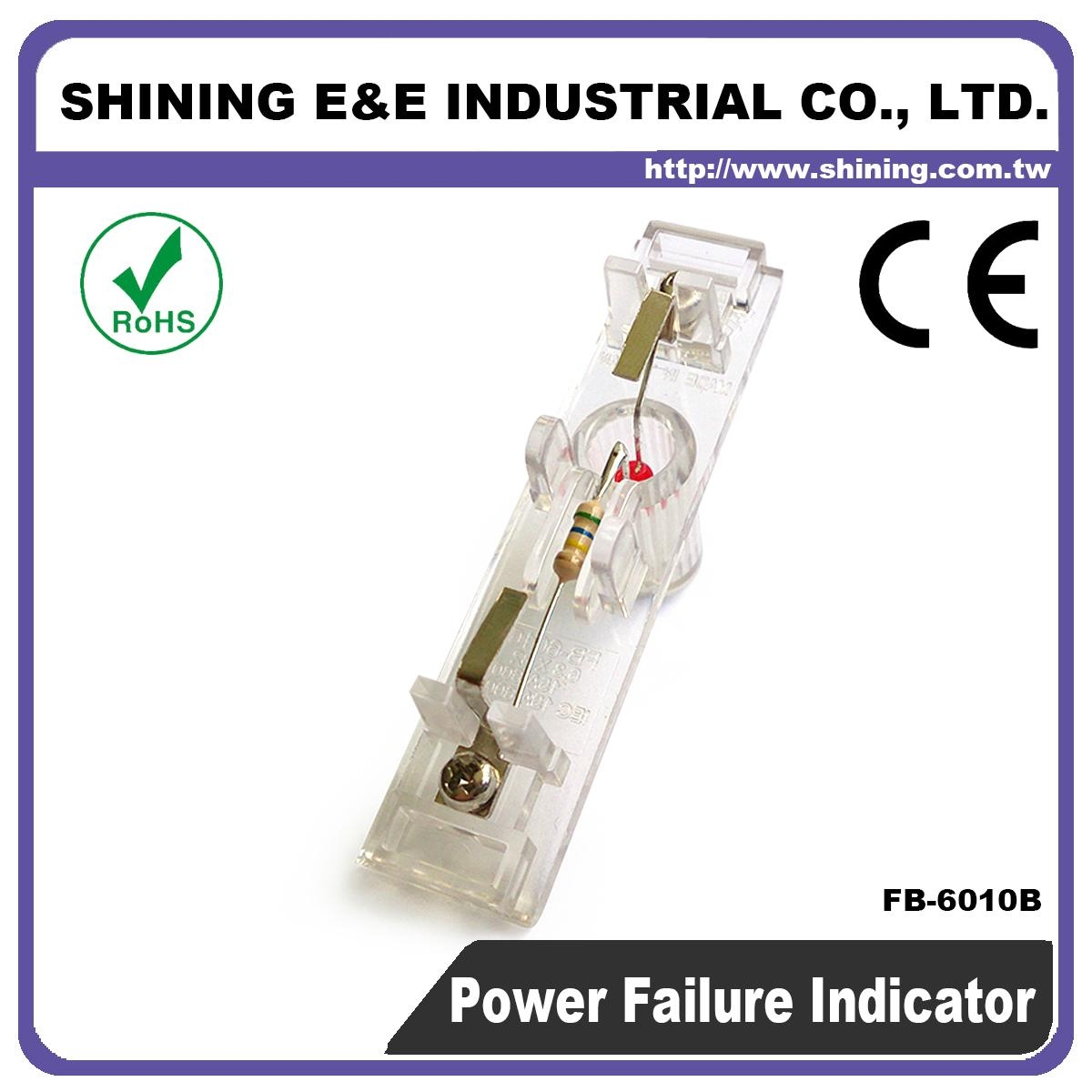

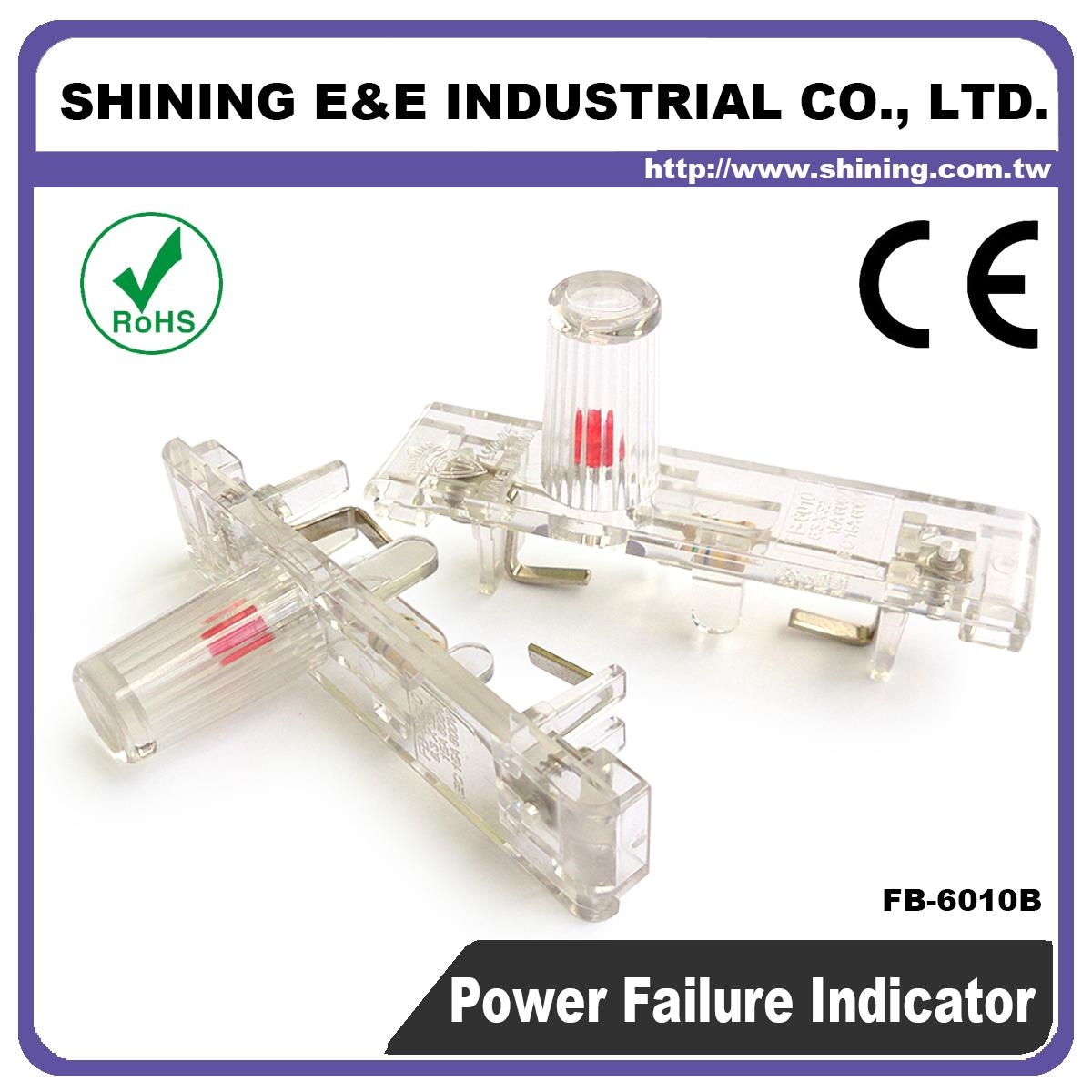

| Product Pictures |
 |
| Item No. |
FB-6010 |
FB-6010A |
FB-6010B |
| Specifications/Dimensions |
AC/DC Indicator |
AC Indicator |
AC/DC Indicator |
| Length (L) [mm] |
55.0 mm |
55.0 mm |
55.0 mm |
| Width (W) [mm] |
13.0 mm |
13.0 mm |
13.0 mm |
| Height (H) [mm] |
30.0 mm |
30.0 mm |
30.0 mm |
| Electrical Specifications |
|
|
|
| Rated Voltage |
110V~600V (AC / DC) |
AC 110V~380V |
12V~120V (AC / DC) |
| Materials |
|
|
|
| Base Materials |
PC |
PC |
PC |
| Color |
Clear Natural |
Clean Natural |
Clean Natural |
| Flame Retarded Grade |
UL 94V-2 |
UL 94V-2 |
UL 94V-2 |
| Temperature [℃] |
110 ℃ |
110 ℃ |
110 ℃ |
|
Applications
for Fuse Holders Fuse Blocks
|
FB-6011
FB-6012
|
FB-6011
FB-6012
|
FB-6011
FB-6012
|
| Packaging |
| 100pcs/box, 1,200pcs/12boxes/N.W. :6.2kgs /carton |
