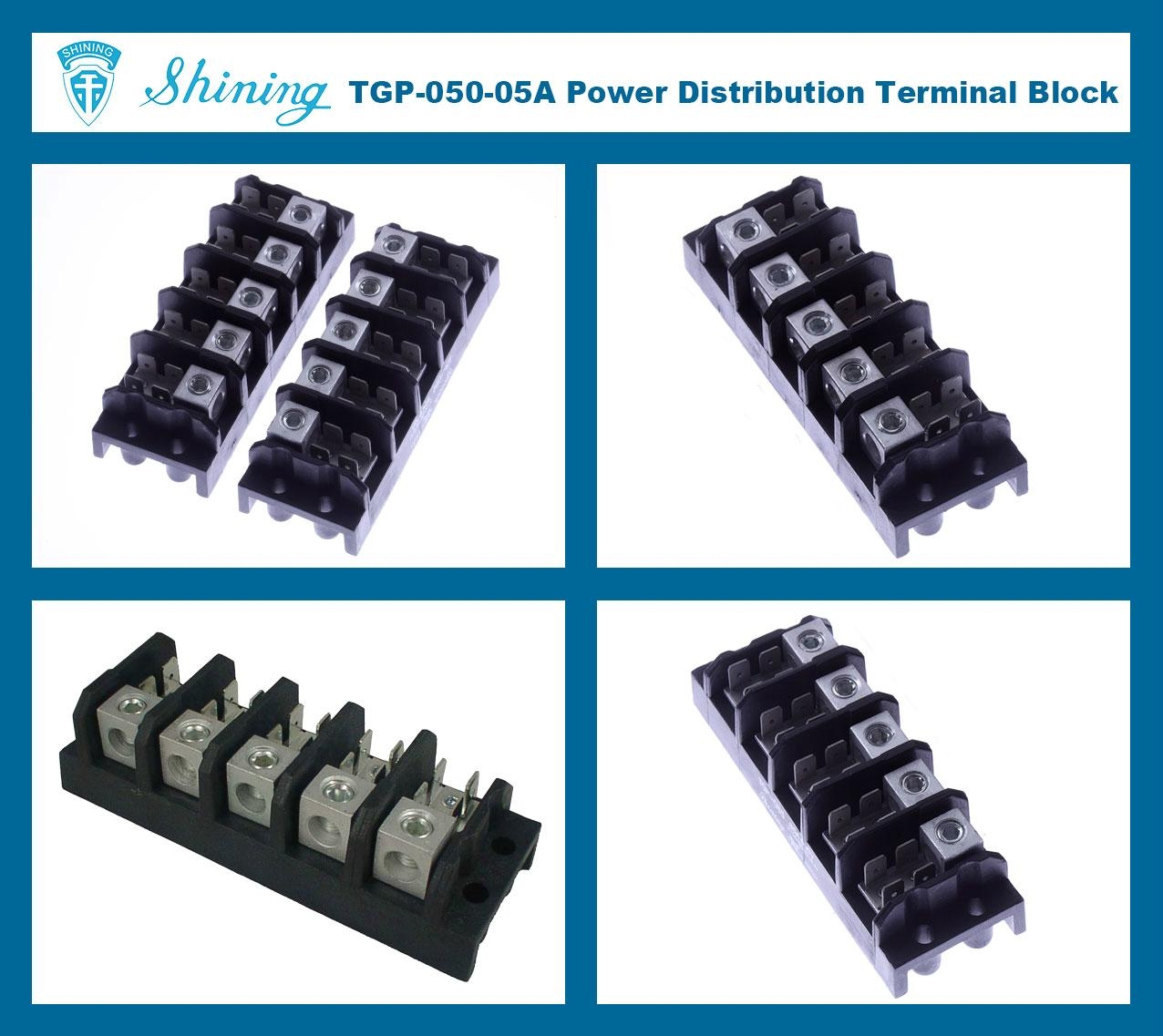

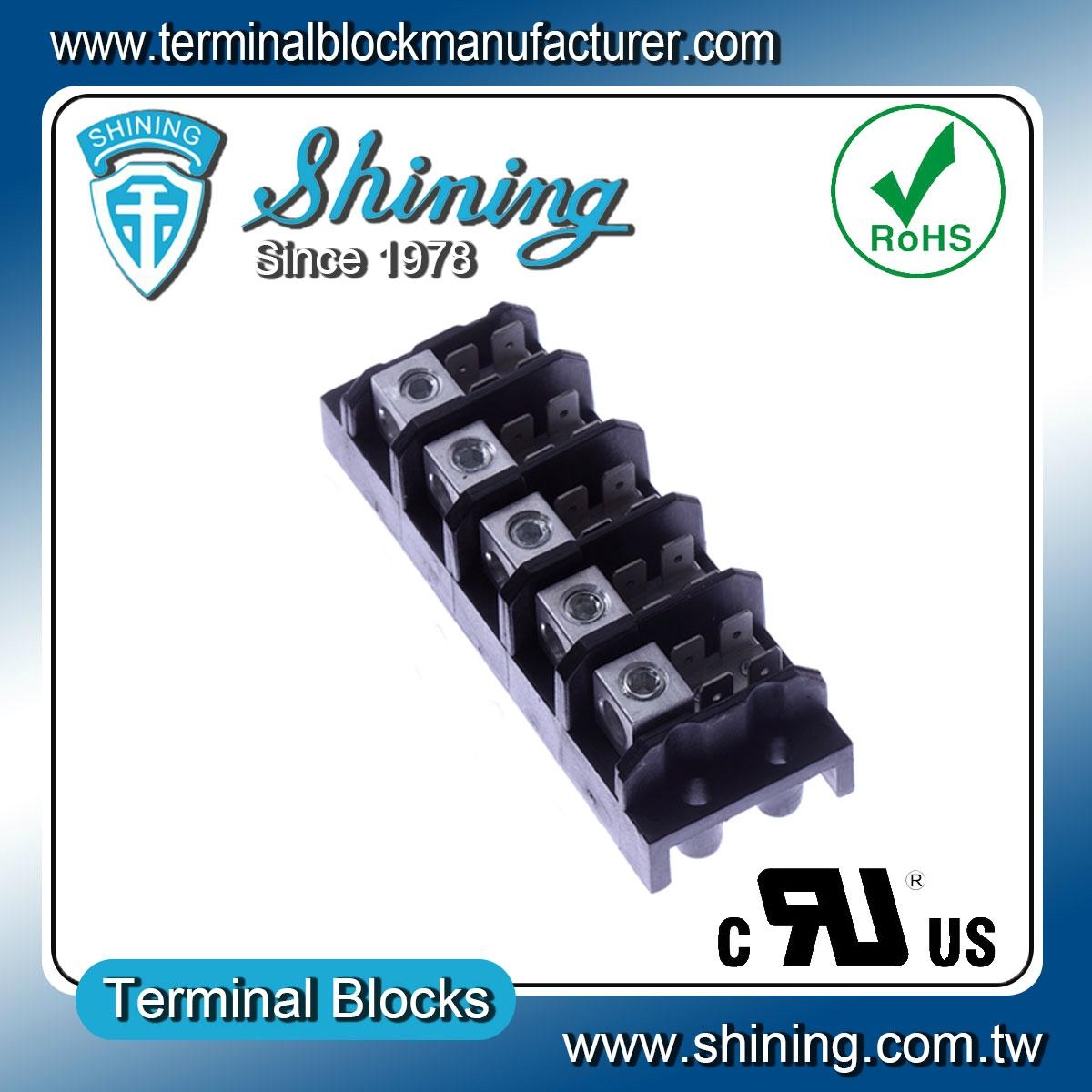

TGP-050-05A 600V 50A 5 Pole Power Distribution Terminal Block
Item number: TGP-050-05A
Rating: 600V, 50A, 5P
Size: 95.0*37.0*32.5mm (L*W*H),
Screw Size: Hexagon Socket Set Screw, M6-1.0
Wire Size: 14.0-3.5 mm2 / AWG 6-12
|
Product Features
|
|
TGP-050-xxA Series Terminal Block is designed for panel installation, and power distribution.
They are UL and cUL certified and their rated voltage and current are 600 volts and 50 amps.
TGP-050-xxA Series Terminal Blocks are available in a wide variety of wiring configurations to provide user with superior flexibility, and the standard screws used are Hexagon Socket Set Screws.
The quick connectors make it convenient to connect and disconnect the circuit. The are 2~12 pole types of TGP-050-xxA Terminal Blocks available for purchase.
|
|

|
|
Item No.
|
TGP-050-02A
|
TGP-050-03A
|
TGP-050-04A
|
TGP-050-05A
|
TGP-050-06A
|
TGP-050-07A
|
|
Specifications
|
|
|
|
|
|
|
|
Total Length (L) [inch]
|
50.0mm (1.969")
|
65.0mm (2.559")
|
80.0mm (3.150")
|
95.0mm (3.740")
|
110.0mm (4.331")
|
125.0mm (4.921")
|
|
Ref. Length (L1) [inch]
|
42.0mm (1.654")
|
57.0mm (2.244")
|
72.0mm (2.835")
|
87.0mm (3.425")
|
102.0mm (4.106")
|
117.0mm (4.606")
|
| Ref. Length (L2) [inch] |
15.0mm (0.591") |
15.0mm (0.591") |
15.0mm (0.591") |
15.0mm (0.591") |
15.0mm (0.591") |
15.0mm (0.591") |
| Ref. Length (L3) [inch] |
10.0mm (0.394") |
10.0mm (0.394") |
10.0mm (0.394") |
10.0mm (0.394") |
10.0mm (0.394") |
10.0mm (0.394") |
| Width (W) [inch] |
37.0mm (1.457") |
37.0mm (1.457") |
37.0mm (1.457") |
37.0mm (1.457") |
37.0mm (1.457") |
37.0mm (1.457") |
| Ref. Width (W1) [inch] |
16.0mm (0.630") |
16.0mm (0.630") |
16.0mm (0.630") |
16.0mm (0.630") |
16.0mm (0.630") |
16.0mm (0.630") |
| Height (H) [inch] |
32.5mm (1.280") |
32.5mm (1.280") |
32.5mm (1.280") |
32.5mm (1.280") |
32.5mm (1.280") |
32.5mm (1.280") |
| Screw (Line) |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
| Rated Torque [in-lb] |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
Quick Connect Size
(Load) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
| Poles |
2P |
3P |
4P |
5P |
6P |
7P |
| Electrical Specifications |
|
|
|
|
|
|
| Rated Voltage [V] |
600V |
600V |
600V |
600V |
600V |
600V |
| Rated Current [A] |
50A |
50A |
50A |
50A |
50A |
50A |
| Wire Size [AWG] |
3.5-14 mm2 |
3.5-14 mm2 |
3.5-14 mm2 |
3.5-14 mm2 |
3.5-14 mm2 |
3.5-14 mm2 |
| Wire Size [mm2] |
#6-12 AWG |
#6-12 AWG |
#6-12 AWG |
#6-12 AWG |
#6-12 AWG |
#6-12 AWG |
| Materials |
|
|
|
|
|
|
| Insulator Materials |
PBT |
PBT |
PBT |
PBT |
PBT |
PBT |
| Color |
Black |
Black |
Black |
Black |
Black |
Black |
| Flame Retarded Grade |
UL 94V-0 |
UL 94V-0 |
UL 94V-0 |
UL 94V-0 |
UL 94V-0 |
UL 94V-0 |
| Temperature [oC] |
120oC |
120oC |
120oC |
120oC |
120oC |
120oC |
| Approval |
UL/cUL Approved. File No.E25927 |
|
|
| Item No. |
TGP-050-08A |
TGP-050-09A |
TGP-050-10A |
TGP-050-11A |
TGP-050-12A |
TGP-050-XXA |
| Specifications |
|
|
|
|
|
|
| Total Length (L) [inch] |
140.0mm |
155.0mm |
170.0mm |
185.0mm |
200.0mm |
mm |
| Ref. Length (L1) [inch] |
132.0mm |
147.0mm |
162.0mm |
177.0mm |
192.0mm |
mm |
| Ref. Length (L2) [inch] |
15.0mm (0.591") |
15.0mm (0.591") |
15.0mm (0.591") |
15.0mm (0.591") |
15.0mm (0.591") |
15.0mm (0.591") |
| Ref. Length (L3) [inch] |
10.0mm (0.394") |
10.0mm (0.394") |
10.0mm (0.394") |
10.0mm (0.394") |
10.0mm (0.394") |
10.0mm (0.394") |
| Width (W) [inch] |
37.0mm (1.457") |
37.0mm (1.457") |
37.0mm (1.457") |
37.0mm (1.457") |
37.0mm (1.457") |
37.0mm (1.457") |
| Ref. Width (W1) [inch] |
16.0mm (0.630") |
16.0mm (0.630") |
16.0mm (0.630") |
16.0mm (0.630") |
16.0mm (0.630") |
16.0mm (0.630") |
| Height (H) [inch] |
32.5mm (1.280") |
32.5mm (1.280") |
32.5mm (1.280") |
32.5mm (1.280") |
32.5mm (1.280") |
32.5mm (1.280") |
| Screw (Line) |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
Hexagon Socket Set Screw
M6-1.0 |
| Rated Torque [in-lb] |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
2.26 N-m
(20 in-lb) |
Quick Connect Size
(Load) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
4.80 mm
(3/16" Q.C. 4 Tab) |
| Poles |
8P |
9P |
10P |
11P |
12P |
P |
| Electrical Specifications |
|
|
|
|
|
|
| Rated Voltage [V] |
600V |
600V |
600V |
600V |
600V |
600 V |
| Rated Current [A] |
50A |
50A |
50A |
50A |
50A |
50 A |
| Wire Size [AWG] |
3.5-14 mm2 |
3.5-14 mm2 |
3.5-14 mm2 |
3.5-14 mm2 |
3.5-14 mm2 |
3.5-14 mm2 |
| Wire Size [mm2] |
#6-12 AWG |
#6-12 AWG |
#6-12 AWG |
#6-12 AWG |
#6-12 AWG |
#6-12 AWG |
| Materials |
|
|
|
|
|
|
| Insulator Materials |
PBT |
PBT |
PBT |
PBT |
PBT |
PBT |
| Color |
Black |
Black |
Black |
Black |
Black |
Black |
| Flame Retarded Grade |
UL 94V-0 |
UL 94V-0 |
UL 94V-0 |
UL 94V-0 |
UL 94V-0 |
UL 94V-0 |
| Temperature [oC] |
120oC |
120oC |
120oC |
120oC |
120oC |
120oC |
| Approval |
UL/cUL Approved. File No.E25927 |
| Packaging |
| 250pcs/N.W. :18.8kgs /carton |
| Shipping information |
| 1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
|
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.
|
