Product Description

SSR-S25AA-H Single Phase 25Amp AC to AC Solid State Relay ( SSR )

More Information
SSR-S25AA-H	http://www.shining.com.tw/1EN/ENssr_single_phase_ac_to_ac.htm
	http://www.terminalsblocks.com/en/product/Single-Phase-Solid-State-Relay-SSR-S25AA-H/SSR-S25AA-H.html
	http://www.terminalblockmanufacturer.com/pro.php?m=d&pid=136&cid=22&f=17

Product Description

Gerneral Product Information
Item number:	SSR-S25AA-H
Output Load Current:	25A
Output Load Voltage Range:	90~480VAC
Operate InputCurrent:	80~240VAC
Specification:	57 x 42 x 24 mm

Product Features

• 600V Transient Capability
• Low EMI/EFI & Surge by zero cross trigger control.
• High Isolation over than 50MΩ/500VDC
• Panel Mounting
• LED Input status Indicator
• Integrated with removable tinger-proof cover SSR-S-CV • Fast reaction, high reliability and long life
• No switching speaks, no noise, and no contact points.
• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
• UL and cUL Approval. File No. E301692. CE Compliant.


Product Item No.	SSR-S10AA	SSR-S25AA	SSR-S40AA
Specifications/Dimensions
L x W x H	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm
Ref. L1 x W1	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm
Ref. L2 x W2	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm
Ref. Diameter (Ø)	5 mm	5 mm	5 mm
Electrical Specifications
Max. Load Current	10 A	25 A	40 A
Control Method	Zero Cross	Zero Cross	Zero Cross
Input Operating Voltage	80~240 VAC	80~240 VAC	80~240 VAC
Input Current	20mA@ 220 VAC	20mA@ 220 VAC	20mA@ 220 VAC
Must Turn Off Voltage	0~70 VAC	0~70 VAC	0~70 VAC
Output Load Voltage Range	24~280 VAC	24~280 VAC	24~280 VAC
Max. One Circle Peak Surge	120 A	250 A	400 A
Min. Blocking Voltage	600 V	600 V	600 V
Turn On & Turn Off Time	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle
Isolate Impedance	50 MΩ / 500 VDC	50 MΩ / 500 VDC	50 MΩ / 500 VDC
Max. On-State Voltage Drop	1.6 V / 25°C	1.6 V / 25°C	1.6 V / 25°C
Materials
Body Materials	PBT
Color	White
Accessories & Parts
Protective Cover	SSR-S-CV (Optional)
Heat Sink	HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200)
Approval & Certificate	UL/cUL File No. E301692, CE, LVD


Product Item No.	SSR-S10AA-H	SSR-S25AA-H	SSR-S40AA-H
Specifications/Dimensions
L x W x H	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm
Ref. L1 x W1	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm
Ref. L2 x W2	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm
Ref. Diameter (Ø)	5 mm	5 mm	5 mm
Electrical Specifications
Max. Load Current	10 A	25 A	40 A
Control Method	Zero Cross	Zero Cross	Zero Cross
Input Operating Voltage	80~240 VAC	80~240 VAC	80~240 VAC
Input Current	20mA@ 220 VAC	20mA@ 220 VAC	20mA@ 220 VAC
Must Turn Off Voltage	0~70 VAC	0~70 VAC	0~70 VAC
Output Load Voltage Range	90~480 VAC	90~480 VAC	90~480 VAC
Max. One Circle Peak Surge	120 A	250 A	400 A
Min. Blocking Voltage	600 V	600 V	600 V
Turn On & Turn Off Time	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle
Isolate Impedance	50 MΩ / 500 VDC	50 MΩ / 500 VDC	50 MΩ / 500 VDC
Max. On-State Voltage Drop	1.6 V / 25°C	1.6 V / 25°C	1.6 V / 25°C
Materials
Body Materials	PBT
Color	White
Accessories & Parts
Protective Cover	SSR-S-CV (Optional)
Heat Sink	HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200)
Approval & Certificate	UL/cUL File No. E301692, CE, LVD

Packaging & Shipping

Packaging

100pcs/ctn, N.W. :11.6kgs /carton

Shipping information

1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.

2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.

SSR-S25AA-H Single Phase 25Amp AC to AC Solid State Relay ( SSR )

Product Description

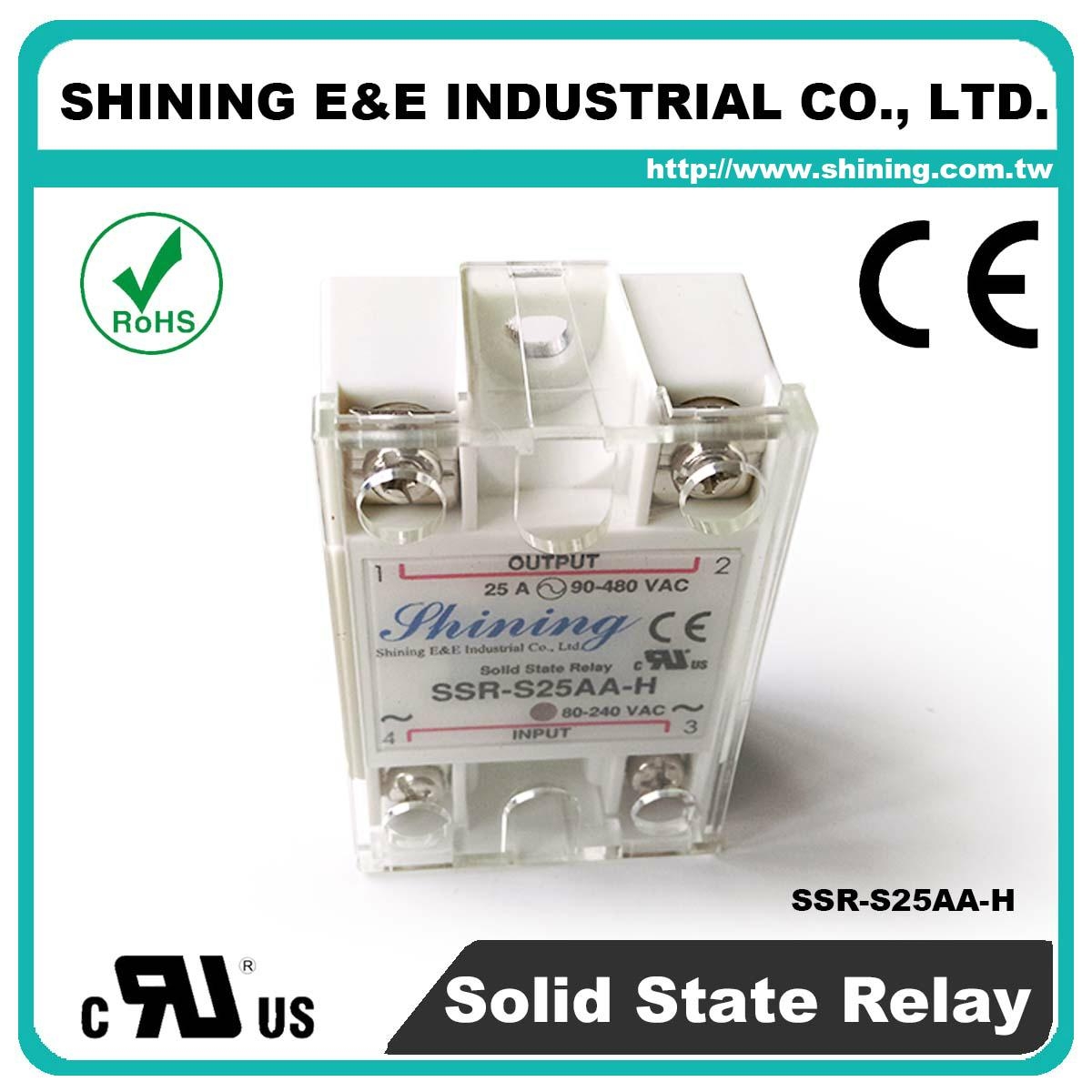

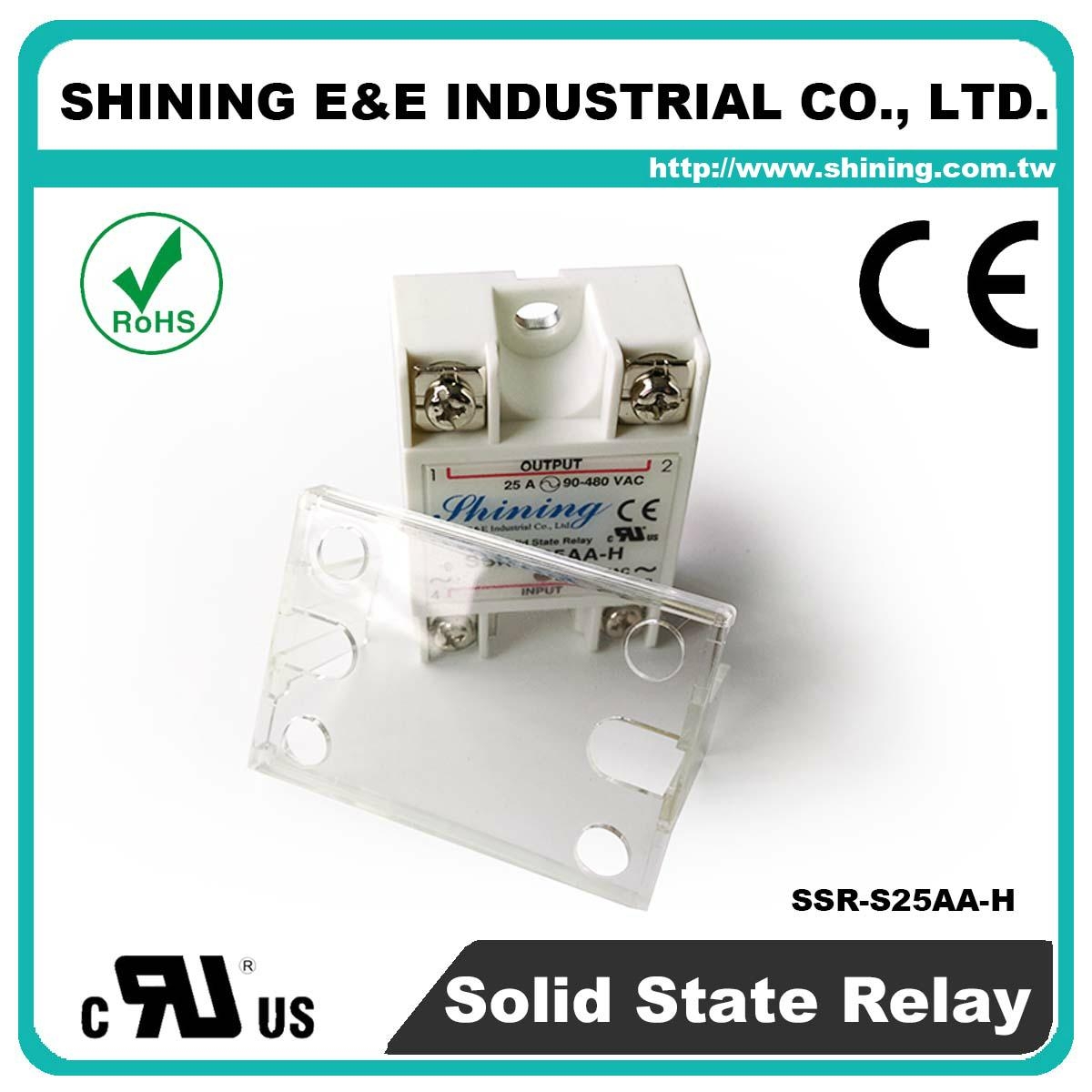

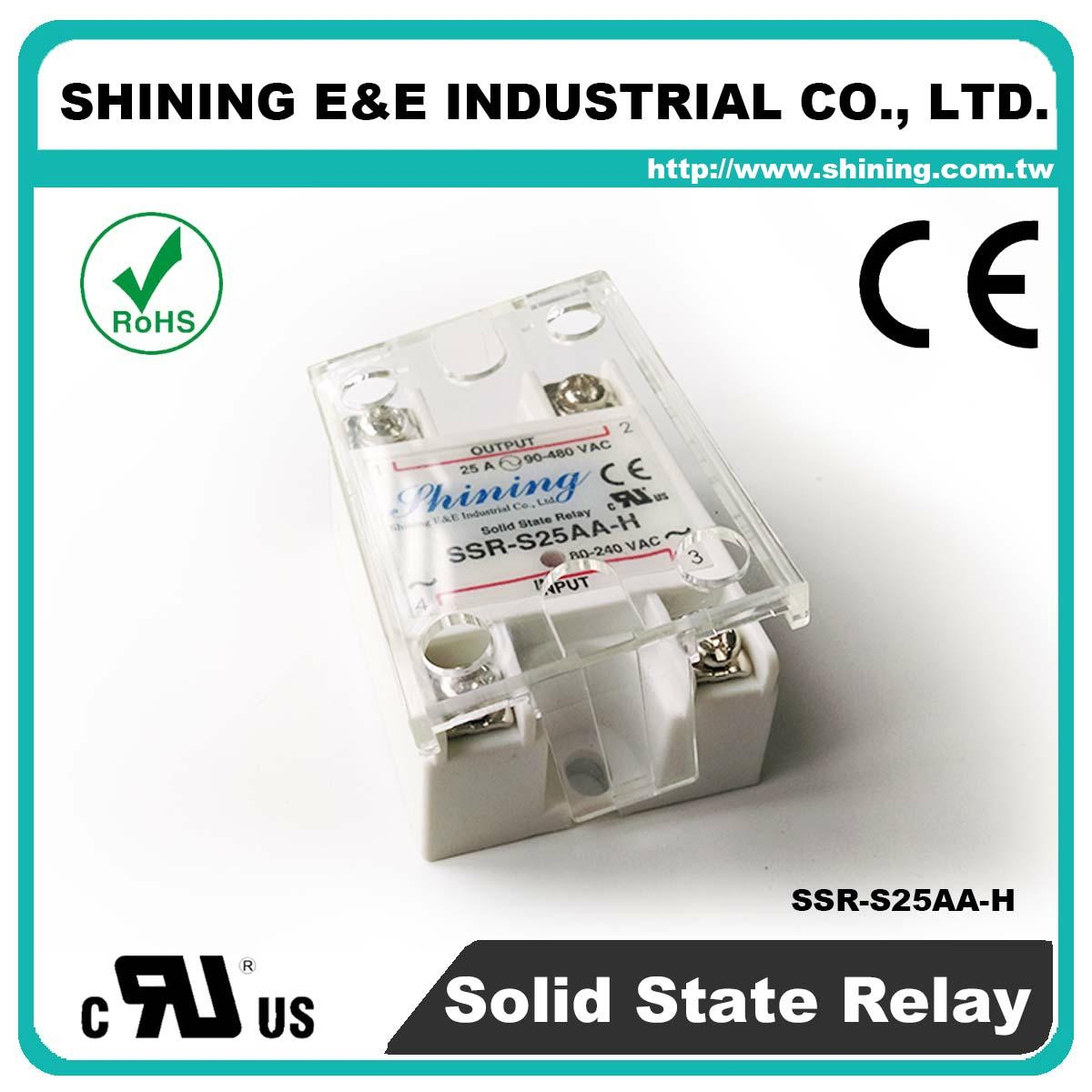

Product Image
