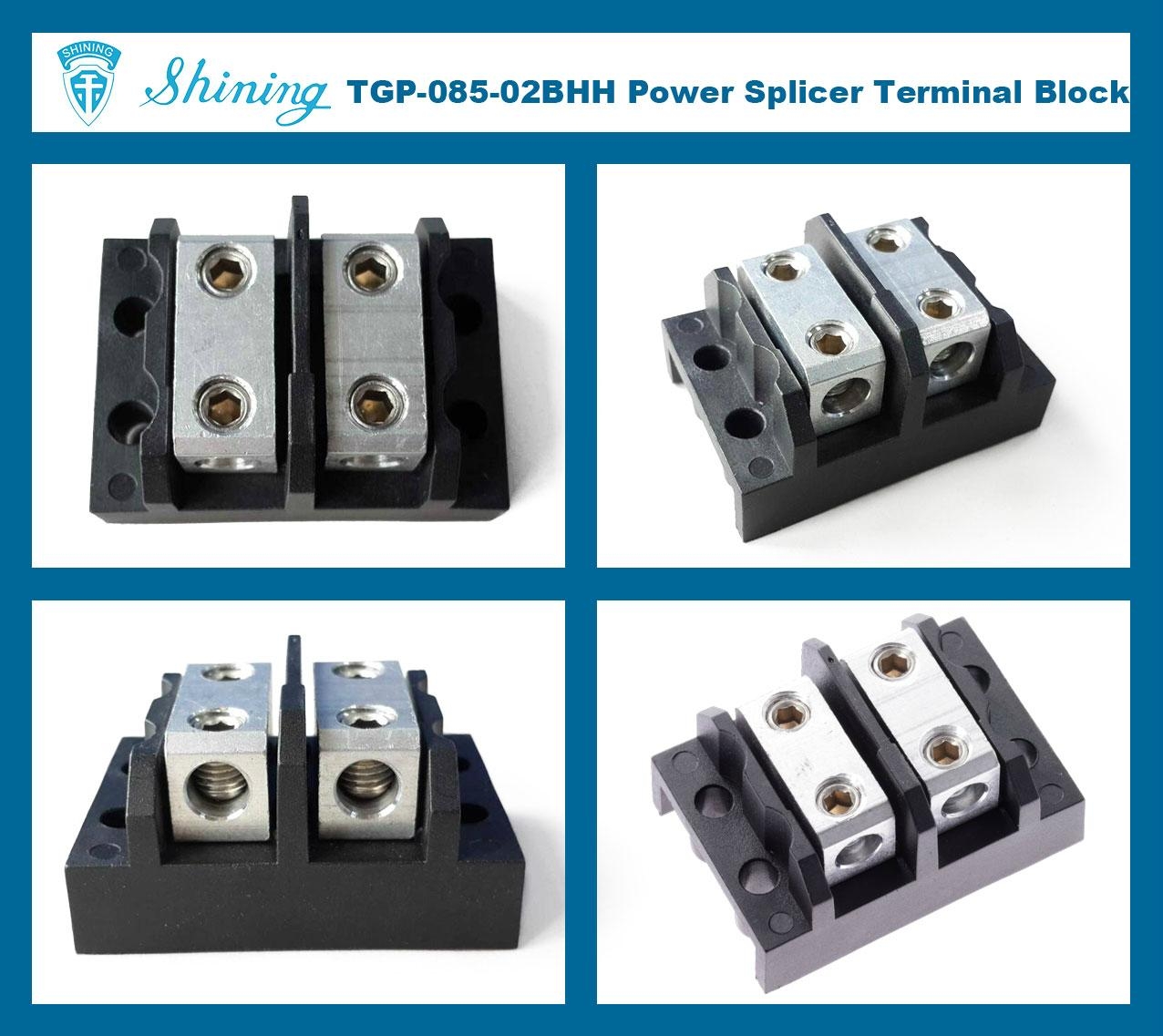

TGP-085-02BHH 600V 85 Amp 2 Way Industrial Power Terminal Blocks
| More Information | ||
| TGP-085-02BHH |
|
|
| http://www.terminalsblocks.com/ | ||
| http://www.terminalblockmanufacturer.com/ | ||
Product Description
| Gerneral Product Information | |
| Item number: | TGP-085-02BHH |
| Rating: | 600V, 85A, 2 Way (Pole) |
| Size: | 59.8*41.0*33.2mm (L*W*H) |
| Wire Size: |
Input: #14-2 AWG / Output: #14-2 AWG Input: 2.0-33.0 mm2 / Output: 2.0-33.0 mm2 |
| Screw Size: | Hexagon Socket Set Screw, 5/16-24 |
| Dimensions [mm] | ||||
| Item No. | Way (Pole) | Length (L) | Width (W) | Height (H) |
| TGP-085-02BHH | 2 | 2.354" (59.8mm) | 1.614"
(41.0mm) |
1.307" (33.2mm) |
| TGP-085-03BHH | 3 | 3.110" (79.0mm) | ||
| TGP-085-04BHH | 4 | 3.835" (97.4mm) | ||
| TGP-085-05BHH | 5 | 4.598" (116.8mm) | ||
| TGP-085-06BHH | 6 | 5.362" (136.2mm) | ||
| TGP-085-07BHH | 7 | 6.094" (154.8mm) | ||
| TGP-085-08BHH | 8 | 6.850" (174.0mm) | ||
| Product Features |
|
Item Number: TGP-085-02BHH Rated Voltage: 600V Rated Current: 85A Install Type: Panel Mounted. Din Rail is not required Way (Pole): 2 Way (Pole) Characteristic: 1.Screw: Hexagon Socket Set Screw (5/16-24) 2. Screw Material: Blank= Steel; SS= Stainless Steel 3. Input: 1 Way ; Output: 1 Way Certificate: RoHS. UL / cUL Approval |
 |
|||||||
| Item No. | TGP-085-02BHH | TGP-085-03BHH | TGP-085-04BHH | TGP-085-05BHH | TGP-085-06BHH | TGP-085-07BHH | TGP-085-08BHH |
| Specifications | |||||||
| Total Length (L) [inch] | 2.354" (59.8mm) | 3.110"(79.0mm) | 3.835"(97.41mm) | 4.598"(116.8mm) | 5.362"(136.2mm) | 6.094"(154.8mm) | 6.850"(174.0mm) |
| Ref. Length (L1) [inch] | 1.890"(48.0mm) | 2.638"(67.0mm) | 3.386"(86.0mm) | 4.134"(105.0mm) | 4.882"(124.0mm) | 5.630"(143.0mm) | 6.378"(162.0mm) |
| Ref. Length (L2) [inch] | 0.748"(19.0mm) | ||||||
| Ref. Length (L3) [inch] | 0.630"(16.0mm) | ||||||
| Width (W) [inch] | 1.614"(41.0mm) | ||||||
|
Ref. Width (W1) [inch] |
0.630"(16.0mm) | ||||||
| Height (H) [inch] | 1.307"(33.2mm) | ||||||
| Screw (Line) | Hexagon Socket Set Screw, 5/16-24 | ||||||
| Rated Torque [in-lb] | 60 in-lb or 2.26 N-m | ||||||
| Quick Connect Size (Load) | N / A | ||||||
| Way (Pole) | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Electrical Specifications | |||||||
| Rated Voltage [V] | 600V | ||||||
| Rated Current [A] | 85A | ||||||
| Wire Size [AWG] | Input: #14-2 AWG / Output: #14-2 AWG | ||||||
| WIre Size [mm2] | Input: 2.0-33.0 mm2 / Output: 2.0-33.0 mm2 | ||||||
| Materials | |||||||
| Insulator Materials | PBT | ||||||
| Color | Black | ||||||
| Flame Retarded Grade | UL 94V-0 | ||||||
| Temperature [℃] | 120℃ | ||||||
| Approval | UL/cUL Approved. File No. E257927 | ||||||
| Packaging |
| 300pcs/N.W. :19.5kgs /carton |
