FB-M031PQ 600V 30Amp 1 Way UL 10x38 Ceramic Midget Fuse Block

FB-M031PQ 600V 30Amp 1 Way UL 10x38 Ceramic Midget Fuse Block

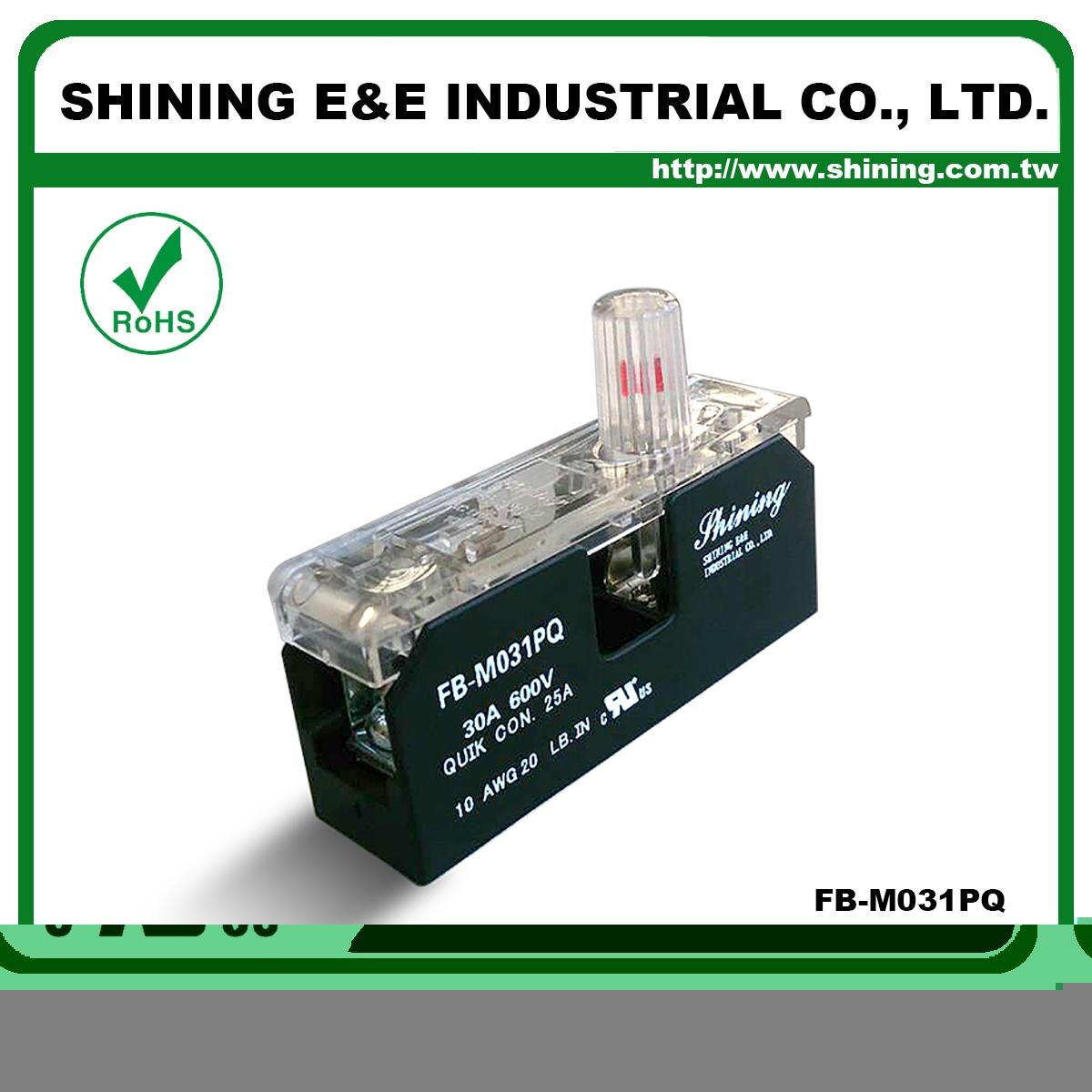

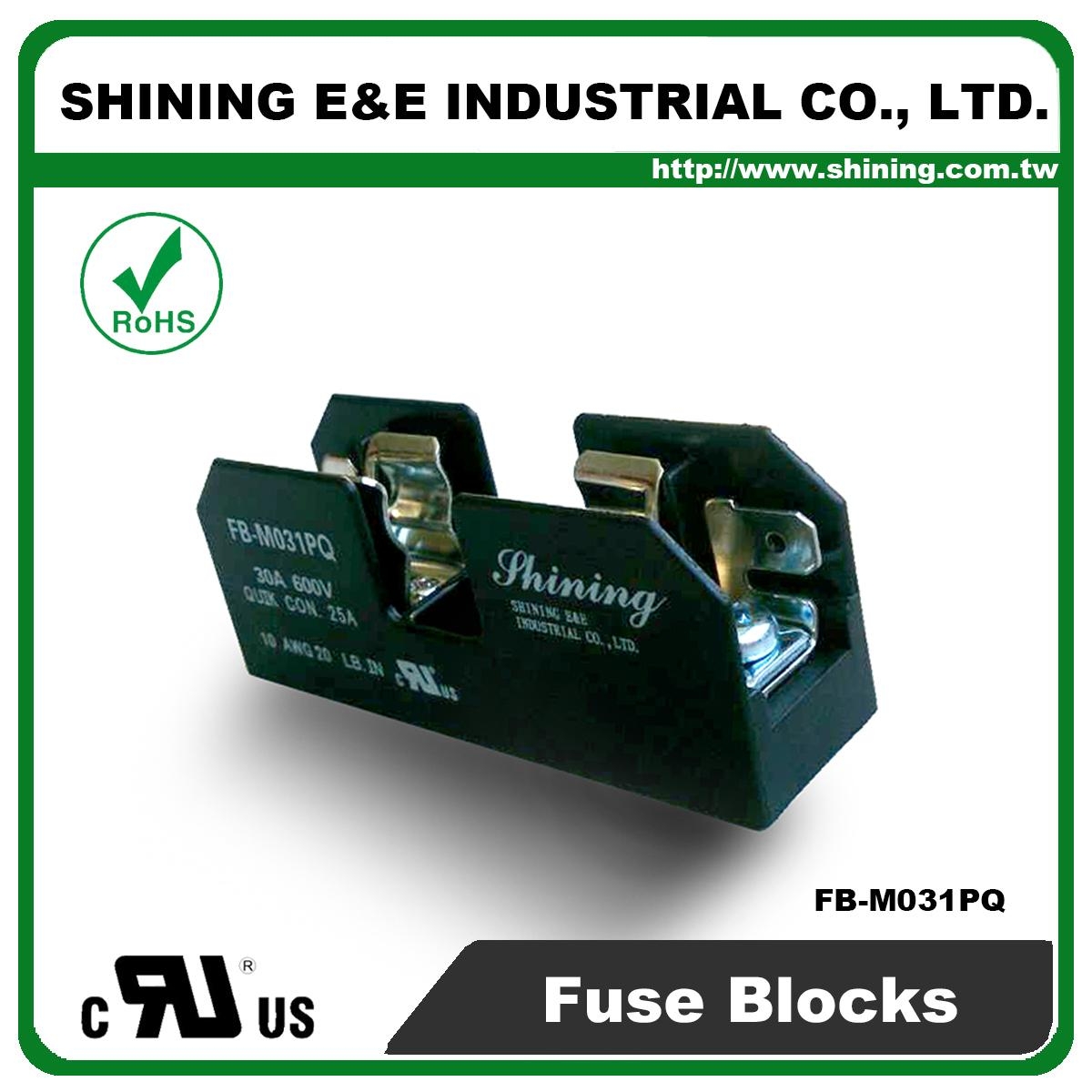

FB-M031PQ 10x38 30A Midget Fuse Block

•Item number: FB-M031PQ

•Rating: 600V, 30A, 1P

•Size: 76.2x21.0x30.3mm (LxWxH)

•Screw Size: M5

•Wire Size: AWG 22-10

•Molded from UL94-V2 material with excellent flame- and shock-resistance

•Suitable for 10x38mm(13/32") fuse

•Designed with (2) pressure plate terminal and (4) .250” quick-connect terminals per pole.

•Panel Mounting or standard 35mm Din Rail Mounting available.

•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.

•UL and cUL recognized. File No. E300304

•Packing: 300pcs/ctn, N.W. :12.0kgs /carton

Product Item No.	FB-M031PQ	FB-M032PQ	FB-M033PQ
Specifications/Dimensions Tolerance: +/- 0.015" (0.38 mm)
Length (L)  [inch]	3.000" (76.2 mm)	3.000" (76.2 mm)	3.000" (76.2 mm)
Width (W)  [inch]	0.827" (21.0 mm)	1.598" (40.6 mm)	2.370" (60.2 mm)
Height (H)  [inch]	1.193" (30.3 mm)	1.193" (30.3 mm)	1.193" (30.3 mm)
Ref. Height (H1) [inch]	0.354" (9.0 mm)	0.354" (9.0 mm)	0.354" (9.0 mm)
Pitch (P)  [inch]	0.772" (19.6 mm)	0.772" (19.6 mm)	0.772" (19.6 mm)
Mounting Position (P1)  [inch]	N/A	0.772" (19.6 mm)	1.543" (39.2 mm)
Screw	M5	M5	M5
Rated Torque	20 in-lb	20 in-lb	20 in-lb
Terminal Type	Pressure Plate with Quick Connect	Pressure Plate with Quick Connect	Pressure Plate with Quick Connect
Poles	1	2	3
Electrical Specifications
Rated Voltage	600 V	600 V	600 V
Rated Current	30 A	30 A	30 A
Wire Size (AWG)	#10-22 AWG	#10-22 AWG	#10-22 AWG
Wire Size [mm2]	0.32~5.3 mm2	0.32~5.3 mm2	0.32~5.3 mm2
Materials
Base Materials	Thermoplastic	Thermoplastic	Thermoplastic
Color	Black	Black	Black
Flame Retarded Grade	UL 94V-0	UL 94V-0, V-2	UL 94V-0, V-2
Temperature [oC]	120oC	120oC	120oC
Clips	Tin-Plated Phosphor Bronze	Tin-Plated Phosphor Bronze	Tin-Plated Phosphor Bronze
Accessories & Parts
Ava. Fuse Specifications	13/32"x 1 1/2" (10x38 mm fuse)	13/32"x 1 1/2" (10x38 mm fuse)	13/32"x 1 1/2" (10x38 mm fuse)
Power-Off / Power Failure Indicators	FB-030-3
DIN Rail Adapter	DRA-1	DRA-2	DRA-3
Ava. 35 mm DIN Rail	TA-001A, TA-001S
Ava. End Clamp	TA-002, TA-002H, TE-002, TF-ECL, TF-ECH
Approval	UL/cUL File No. E300304	UL/cUL File No. E300304	UL/cUL File No. E300304
